Connecting TEKTELIC VIVID LoRaWAN® Smart Room & Occupancy Sensor to the Kaa IoT Platform
This tutorial is the third in a series dedicated to TEKTELIC sensors:
- Step-by-Step Tutorial: Connecting TEKTELIC BREEZE to Kaa
- Connecting the TEKTELIC Comfort LoRaWAN® Smart Room Sensor to the Kaa IoT Platform
In this guide, we will connect the TEKTELIC VIVID LORAWAN® SMART ROOM & OCCUPANCY SENSOR to the Kaa IoT platform. The key feature of this device is its PIR sensor, a type of motion detector that senses changes in infrared radiation, typically emitted by warm objects in its field of view, such as human bodies. The rest of the sensor suite is similar to the COMFORT Smart Room Sensor, including:
- Temperature sensor
- Humidity sensor
- Light intensity sensor
- Magnetic contact sensor
- Sensor that detects impact on devices (motion, shock). Detection is performed by the built-in accelerometer
Due to its variety of built-in sensors, this device can be used in a wide range of applications, such as:
- Indoor Environment Monitoring
- Room Occupancy
- Facility Management
- Desk Occupancy
- Point of Entry Security
- HVAC Optimization
The VIVID Smart Room Sensor also offers extensive configuration options:
- Turn individual modules on and off to save power when not in use
- Customize notifications sent by the sensor
- Adjust the logic for element operation
The device allows for flexible configuration via downlink commands, enabling remote reconfiguration for optimized power usage and other settings.
Now, let's move to the next section where we will work with the TEKTELIC VIVID Smart Room Sensor and connect it to the Kaa IoT Platform using The Things Stack (TTN).
Step 1: Device Registration in TTN
1. Log in to The Things Stack:
Begin by logging into your The Things Stack (TTN) account. If you do not have an account, refer to the previous tutorials (connecting TEKTELIC BREEZE, connecting TEKTELIC COMFORT) for account creation.
We remember that we have the tektelic-equipment application, and we will add our new sensor to it.
2. Register the End Device:
- Navigate to End devices and click on Register end device.
3. Select Device:
We will register the device as we did in previous parts by searching for it in the device repository.
- In the registration form, select TEKTELIC as the brand and choose Smart Room Sensor - PIR as the model.

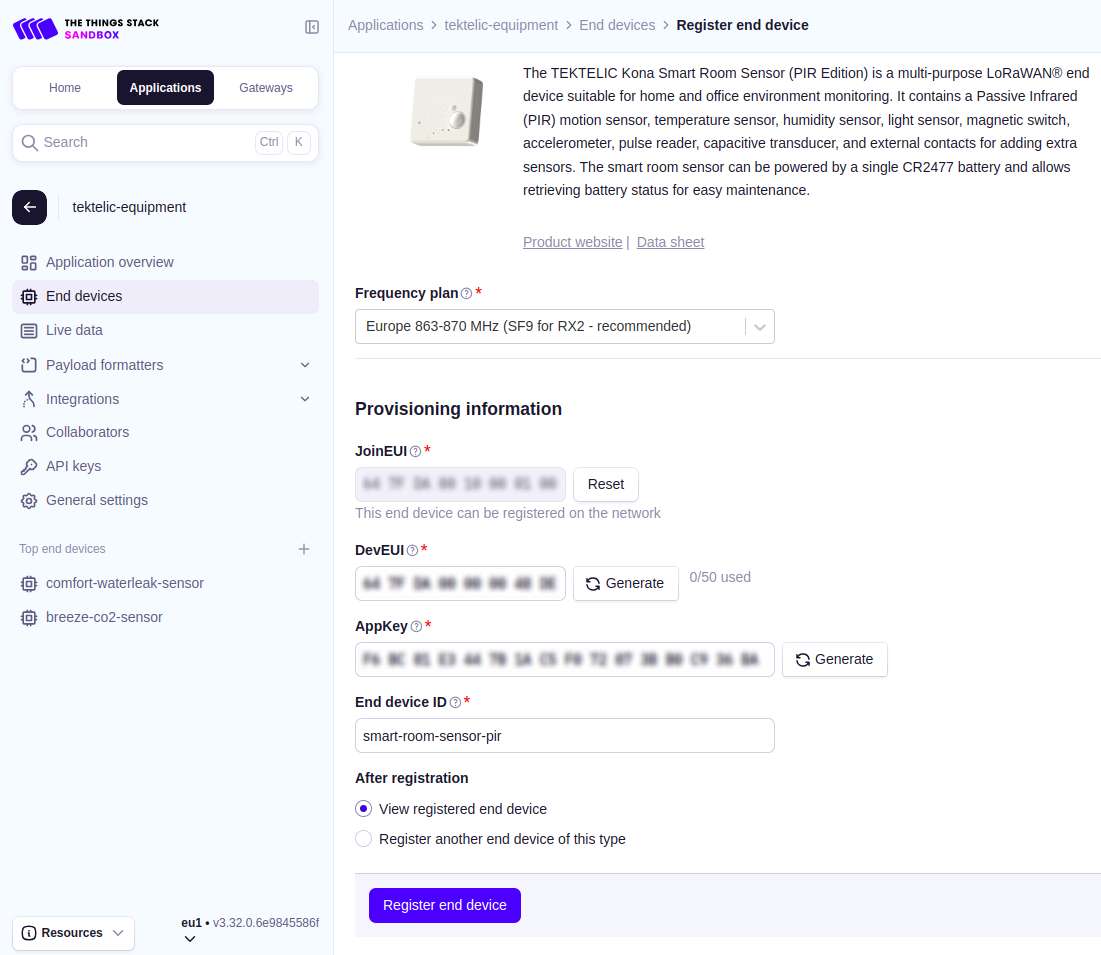

4. Enter Device Parameters:
- Enter the JoinEUI, DevEUI, and AppKey parameters, which can be found on the device packaging.
These details are available both as text and in QR code form for scanning.
5. Verify Device Registration:
After entering the required parameters, confirm the registration of the device. Ensure all details are correct before proceeding.
Step 2: Checking Device Revision and Firmware Version
1. Identify Device Revision
It’s important to know the revision of the module and the firmware version.
Depending on this information, you may need to use different versions of the documentation (see the table below).
In our case, the sensor has Module Revision A. In order to understand more precisely which document we need to use, we need to read the FW Version from the sensor.
2. Obtain Firmware Version
- To obtain the firmware version, you will need to send a downlink message (0x71) to port 100.
3. Restart the Sensor
- The first thing to do is to restart the sensor (ensure that the batteries are installed in the device) to allow it to register on the TTN.
Once the device appears on the TTN, the platform will use the default payload formatter, which allows it to decode the data.
4. Reading the Firmware Version
To read the firmware version click Schedule downlink and send 0x71 payload to the FPort 100.
Keep in mind that this message will be delivered to the sensor only after it sends data to The Things Network (TTN). To trigger the sensor, we should simulate an event.
In the case of the COMFORT sensor, this can be done by placing some water on the water leak cable. Since this device does not have a water cable, we can use the magnetic contact sensor. By bringing a magnet close to the device, we can trigger an event.
Let’s do it and check TTN live data:
After the sensor sends an event and receives the downlink message, the current firmware version will be displayed:
- FW version 1.0.0
- LoRaMAC version 4.4.2
5. Select the Correct Documentation
- Based on the firmware version, you need to select the correct documentation. For our device, we need to refer to the document T0006338_TRM_ver1.3.pdf (link).
It's important to pay attention to the firmware version, as the same address may be used for different settings in different versions of the documentation.
Let us show you why it is important to pay attention to the version by example. Let’s look at configuration address 0x5A in version 1.3 and version 3.1 of the document:
- Document version 1.3:
- Document version 3.1:
We can see that the same address is used for different settings in different versions.
A similar situation is seen with the payload formatters for version 2.2 (link) and version 3.1 (link).
Therefore, you should be careful which version of the FW sensor you use and select the appropriate formatter and documentation.
6. Setting Up the Payload Formatter
Since our sensor has an older firmware version, we will use payload formatter v2.2.
- Go to the Payload formatters tab and select Custom JavaScript formatter.
By default, the formatter will look like this:
- Copy the Decoder function from the link provided above and use it in the decodeUplink function to decode the data.
(Formatter code v2.2)
function decodeUplink(input) {
return { "data": Decoder(input.bytes, input.fPort)};
}
function Decoder(bytes, port) {
var decoded_data = {};
var decoder = [];
var errors = [];
var bytes = convertToUint8Array(bytes);
decoded_data['raw'] = toHexString(bytes).toUpperCase();
decoded_data['port'] = port;
var input = {
"fPort": port,
}
if(input.fPort === 101){
decoder = [
{
key: [],
fn: function(arg) {
var size = arg.length;
var invalid_registers = [];
var responses = [];
while(arg.length > 0){
var downlink_fcnt = arg[0];
var num_invalid_writes = arg[1];
arg = arg.slice(2);
if(num_invalid_writes > 0) {
for(var i = 0; i < num_invalid_writes; i++){
invalid_registers.push("0x" + arg[i].toString(16));
}
arg = arg.slice(num_invalid_writes);
responses.push(num_invalid_writes + ' Invalid write command(s) from DL:' + downlink_fcnt + ' for register(s): ' + invalid_registers);
}
else {
responses.push('All write commands from DL:' + downlink_fcnt + 'were successfull');
}
invalid_registers = [];
}
decoded_data["response"] = responses;
return size;
}
}
];
}
if (input.fPort === 100) {
decoder = [
{
key: [0x00],
fn: function(arg) {
decoded_data['device_eui'] = decode_field(arg, 8, 63, 0, "hexstring");
return 8;
}
},
{
key: [0x01],
fn: function(arg) {
decoded_data['app_eui'] = decode_field(arg, 8, 63, 0, "hexstring");
return 8;
}
},
{
key: [0x02],
fn: function(arg) {
decoded_data['app_key'] = decode_field(arg, 16, 127, 0, "hexstring");
return 16;
}
},
{
key: [0x03],
fn: function(arg) {
decoded_data['device_address'] = decode_field(arg, 4, 31, 0, "hexstring");
return 4;
}
},
{
key: [0x04],
fn: function(arg) {
decoded_data['network_session_key'] = decode_field(arg, 16, 127, 0, "hexstring");
return 16;
}
},
{
key: [0x05],
fn: function(arg) {
decoded_data['app_session_key'] = decode_field(arg, 16, 127, 0, "hexstring");
return 16;
}
},
{
key: [0x10],
fn: function(arg) {
var val = decode_field(arg, 2, 15, 15, "unsigned");
{switch (val){
case 0:
decoded_data['join_mode'] = "ABP";
break;
case 1:
decoded_data['join_mode'] = "OTAA";
break;
default:
decoded_data['join_mode'] = "Invalid";
}}
return 2;
}
},
{
key: [0x11],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('loramac_opts')) {
decoded_data['loramac_opts'] = {};
}
var val = decode_field(arg, 2, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['loramac_opts']['confirm_mode'] = "Unconfirmed";
break;
case 1:
decoded_data['loramac_opts']['confirm_mode'] = "Confirmed";
break;
default:
decoded_data['loramac_opts']['confirm_mode'] = "Invalid";
}}
var val = decode_field(arg, 2, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['loramac_opts']['sync_word'] = "Private";
break;
case 1:
decoded_data['loramac_opts']['sync_word'] = "Public";
break;
default:
decoded_data['loramac_opts']['sync_word'] = "Invalid";
}}
var val = decode_field(arg, 2, 2, 2, "unsigned");
{switch (val){
case 0:
decoded_data['loramac_opts']['duty_cycle'] = "Disable";
break;
case 1:
decoded_data['loramac_opts']['duty_cycle'] = "Enable";
break;
default:
decoded_data['loramac_opts']['duty_cycle'] = "Invalid";
}}
var val = decode_field(arg, 2, 3, 3, "unsigned");
{switch (val){
case 0:
decoded_data['loramac_opts']['adr'] = "Disable";
break;
case 1:
decoded_data['loramac_opts']['adr'] = "Enable";
break;
default:
decoded_data['loramac_opts']['adr'] = "Invalid";
}}
return 2;
}
},
{
key: [0x12],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('loramac_dr_tx')) {
decoded_data['loramac_dr_tx'] = {};
}
decoded_data['loramac_dr_tx']['tx_dr_number'] = decode_field(arg, 2, 11, 8, "unsigned");
decoded_data['loramac_dr_tx']['tx_power'] = decode_field(arg, 2, 3, 0, "unsigned");
return 2;
}
},
{
key: [0x13],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('loramac_rx2')) {
decoded_data['loramac_rx2'] = {};
}
decoded_data['loramac_rx2']['frequency'] = decode_field(arg, 5, 39, 8, "unsigned");
decoded_data['loramac_rx2']['rx2_dr_number'] = decode_field(arg, 5, 7, 0, "unsigned");
return 5;
}
},
{
key: [0x19],
fn: function(arg) {
decoded_data['loramac_net_id_msb'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x1A],
fn: function(arg) {
decoded_data['loramac_net_id_lsb'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x20],
fn: function(arg) {
decoded_data['core'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x21],
fn: function(arg) {
decoded_data['per_battery'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x22],
fn: function(arg) {
decoded_data['per_temperature'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x23],
fn: function(arg) {
decoded_data['per_relative_humidity'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x24],
fn: function(arg) {
decoded_data['per_digital_input'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x25],
fn: function(arg) {
decoded_data['per_light'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x26],
fn: function(arg) {
decoded_data['per_acceleration'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x27],
fn: function(arg) {
decoded_data['per_mcu_temperature'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x28],
fn: function(arg) {
decoded_data['per_pir'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x29],
fn: function(arg) {
decoded_data['per_external_connector'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x2A],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('mode')) {
decoded_data['mode'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['mode']['read_rising_edge'] = "Disable";
break;
case 1:
decoded_data['mode']['read_rising_edge'] = "Enable";
break;
default:
decoded_data['mode']['read_rising_edge'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['mode']['read_falling_edge'] = "Disable";
break;
case 1:
decoded_data['mode']['read_falling_edge'] = "Enable";
break;
default:
decoded_data['mode']['read_falling_edge'] = "Invalid";
}}
return 1;
}
},
{
key: [0x2B],
fn: function(arg) {
decoded_data['reed_switch_count_threshold'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x2C],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('reed_values_to_transmit')) {
decoded_data['reed_values_to_transmit'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['reed_values_to_transmit']['report_state'] = "Off";
break;
case 1:
decoded_data['reed_values_to_transmit']['report_state'] = "On";
break;
default:
decoded_data['reed_values_to_transmit']['report_state'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['reed_values_to_transmit']['report_count'] = "Off";
break;
case 1:
decoded_data['reed_values_to_transmit']['report_count'] = "On";
break;
default:
decoded_data['reed_values_to_transmit']['report_count'] = "Invalid";
}}
return 1;
}
},
{
key: [0x2D],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('external_mode')) {
decoded_data['external_mode'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['external_mode']['rising_edge'] = "Off";
break;
case 1:
decoded_data['external_mode']['rising_edge'] = "On";
break;
default:
decoded_data['external_mode']['rising_edge'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['external_mode']['falling_edge'] = "Off";
break;
case 1:
decoded_data['external_mode']['falling_edge'] = "On";
break;
default:
decoded_data['external_mode']['falling_edge'] = "Invalid";
}}
var val = decode_field(arg, 1, 7, 7, "unsigned");
{switch (val){
case 0:
decoded_data['external_mode']['analog'] = "Digital";
break;
case 1:
decoded_data['external_mode']['analog'] = "Analog";
break;
default:
decoded_data['external_mode']['analog'] = "Invalid";
}}
return 1;
}
},
{
key: [0x2E],
fn: function(arg) {
decoded_data['external_connector_count_thresh'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x2F],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('external_values_to_transmit')) {
decoded_data['external_values_to_transmit'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['external_values_to_transmit']['state'] = "Off";
break;
case 1:
decoded_data['external_values_to_transmit']['state'] = "On";
break;
default:
decoded_data['external_values_to_transmit']['state'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['external_values_to_transmit']['report_count_enabled'] = "Off";
break;
case 1:
decoded_data['external_values_to_transmit']['report_count_enabled'] = "On";
break;
default:
decoded_data['external_values_to_transmit']['report_count_enabled'] = "Invalid";
}}
return 1;
}
},
{
key: [0x30],
fn: function(arg) {
decoded_data['impact_alarm_threshold'] = (decode_field(arg, 2, 15, 0, "unsigned") * 0.001).toFixed(3);
return 2;
}
},
{
key: [0x31],
fn: function(arg) {
decoded_data['acceleration_event_threshold'] = (decode_field(arg, 2, 15, 0, "unsigned") * 0.001).toFixed(3);
return 2;
}
},
{
key: [0x32],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('values_to_transmit')) {
decoded_data['values_to_transmit'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['values_to_transmit']['report_periodic_alarm_enabled'] = "Off";
break;
case 1:
decoded_data['values_to_transmit']['report_periodic_alarm_enabled'] = "On";
break;
default:
decoded_data['values_to_transmit']['report_periodic_alarm_enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['values_to_transmit']['report_periodic_magnitude_enabled'] = "Off";
break;
case 1:
decoded_data['values_to_transmit']['report_periodic_magnitude_enabled'] = "On";
break;
default:
decoded_data['values_to_transmit']['report_periodic_magnitude_enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 2, 2, "unsigned");
{switch (val){
case 0:
decoded_data['values_to_transmit']['report_periodic_vector_enabled'] = "Off";
break;
case 1:
decoded_data['values_to_transmit']['report_periodic_vector_enabled'] = "On";
break;
default:
decoded_data['values_to_transmit']['report_periodic_vector_enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 4, 4, "unsigned");
{switch (val){
case 0:
decoded_data['values_to_transmit']['report_event_magnitude_enabled'] = "Off";
break;
case 1:
decoded_data['values_to_transmit']['report_event_magnitude_enabled'] = "On";
break;
default:
decoded_data['values_to_transmit']['report_event_magnitude_enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 5, 5, "unsigned");
{switch (val){
case 0:
decoded_data['values_to_transmit']['report_event_vector_enabled'] = "Off";
break;
case 1:
decoded_data['values_to_transmit']['report_event_vector_enabled'] = "On";
break;
default:
decoded_data['values_to_transmit']['report_event_vector_enabled'] = "Invalid";
}}
return 1;
}
},
{
key: [0x33],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('event_debounce_time')) {
decoded_data['event_debounce_time'] = {};
}
decoded_data['event_debounce_time']['impact_grace_period'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x34],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('acceleration_mode')) {
decoded_data['acceleration_mode'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['acceleration_mode']['impact_alarm_threshold_enable'] = "Disable";
break;
case 1:
decoded_data['acceleration_mode']['impact_alarm_threshold_enable'] = "Enable";
break;
default:
decoded_data['acceleration_mode']['impact_alarm_threshold_enable'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['acceleration_mode']['event_threshold_enable'] = "Disable";
break;
case 1:
decoded_data['acceleration_mode']['event_threshold_enable'] = "Enable";
break;
default:
decoded_data['acceleration_mode']['event_threshold_enable'] = "Invalid";
}}
var val = decode_field(arg, 1, 4, 4, "unsigned");
{switch (val){
case 0:
decoded_data['acceleration_mode']['x_axis'] = "Disable";
break;
case 1:
decoded_data['acceleration_mode']['x_axis'] = "Enable";
break;
default:
decoded_data['acceleration_mode']['x_axis'] = "Invalid";
}}
var val = decode_field(arg, 1, 5, 5, "unsigned");
{switch (val){
case 0:
decoded_data['acceleration_mode']['y_axis'] = "Disable";
break;
case 1:
decoded_data['acceleration_mode']['y_axis'] = "Enable";
break;
default:
decoded_data['acceleration_mode']['y_axis'] = "Invalid";
}}
var val = decode_field(arg, 1, 6, 6, "unsigned");
{switch (val){
case 0:
decoded_data['acceleration_mode']['z_axis'] = "Disable";
break;
case 1:
decoded_data['acceleration_mode']['z_axis'] = "Enable";
break;
default:
decoded_data['acceleration_mode']['z_axis'] = "Invalid";
}}
var val = decode_field(arg, 1, 7, 7, "unsigned");
{switch (val){
case 0:
decoded_data['acceleration_mode']['power'] = "Off";
break;
case 1:
decoded_data['acceleration_mode']['power'] = "On";
break;
default:
decoded_data['acceleration_mode']['power'] = "Invalid";
}}
return 1;
}
},
{
key: [0x35],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('sensitivity')) {
decoded_data['sensitivity'] = {};
}
var val = decode_field(arg, 1, 2, 0, "unsigned");
{switch (val){
case 1:
decoded_data['sensitivity']['sample_rate'] = "1 Hz";
break;
case 2:
decoded_data['sensitivity']['sample_rate'] = "10 Hz";
break;
case 3:
decoded_data['sensitivity']['sample_rate'] = "25 Hz";
break;
case 4:
decoded_data['sensitivity']['sample_rate'] = "50 Hz";
break;
case 5:
decoded_data['sensitivity']['sample_rate'] = "100 Hz";
break;
case 6:
decoded_data['sensitivity']['sample_rate'] = "200 Hz";
break;
case 7:
decoded_data['sensitivity']['sample_rate'] = "400 Hz";
break;
default:
decoded_data['sensitivity']['sample_rate'] = "Invalid";
}}
var val = decode_field(arg, 1, 5, 4, "unsigned");
{switch (val){
case 0:
decoded_data['sensitivity']['measurement_range'] = "±2 g";
break;
case 1:
decoded_data['sensitivity']['measurement_range'] = "±4 g";
break;
case 2:
decoded_data['sensitivity']['measurement_range'] = "±8 g";
break;
case 3:
decoded_data['sensitivity']['measurement_range'] = "±16 g";
break;
default:
decoded_data['sensitivity']['measurement_range'] = "Invalid";
}}
return 1;
}
},
{
key: [0x36],
fn: function(arg) {
decoded_data['alarm_grace_period'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x37],
fn: function(arg) {
decoded_data['alarm_event_count'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x38],
fn: function(arg) {
decoded_data['alarm_threshold_period'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x39],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('ambient_temp_rh_sample')) {
decoded_data['ambient_temp_rh_sample'] = {};
}
decoded_data['ambient_temp_rh_sample']['temprh_sample_period_idle'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x3A],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('ambient_temp_rh_sample')) {
decoded_data['ambient_temp_rh_sample'] = {};
}
decoded_data['ambient_temp_rh_sample']['temprh_sample_period_active'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x3B],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('temperature_threshold')) {
decoded_data['temperature_threshold'] = {};
}
decoded_data['temperature_threshold']['temp_high_threshold'] = decode_field(arg, 2, 15, 8, "signed");
decoded_data['temperature_threshold']['temp_low_threshold'] = decode_field(arg, 2, 7, 0, "signed");
return 2;
}
},
{
key: [0x3C],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('temperature_threshold')) {
decoded_data['temperature_threshold'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['temperature_threshold']['temp_threshold_enable'] = "Disable";
break;
case 1:
decoded_data['temperature_threshold']['temp_threshold_enable'] = "Enable";
break;
default:
decoded_data['temperature_threshold']['temp_threshold_enable'] = "Invalid";
}}
return 1;
}
},
{
key: [0x3D],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('rh_threshold')) {
decoded_data['rh_threshold'] = {};
}
decoded_data['rh_threshold']['rh_high'] = decode_field(arg, 2, 15, 8, "unsigned");
decoded_data['rh_threshold']['rh_low'] = decode_field(arg, 2, 7, 0, "unsigned");
return 2;
}
},
{
key: [0x3E],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('rh_threshold')) {
decoded_data['rh_threshold'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['rh_threshold']['rh_threshold_enable'] = "Disable";
break;
case 1:
decoded_data['rh_threshold']['rh_threshold_enable'] = "Enable";
break;
default:
decoded_data['rh_threshold']['rh_threshold_enable'] = "Invalid";
}}
return 1;
}
},
{
key: [0x40],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('mcu_temp_sample')) {
decoded_data['mcu_temp_sample'] = {};
}
decoded_data['mcu_temp_sample']['mcu_temp_sample_period_idle'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x41],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('mcu_temp_sample')) {
decoded_data['mcu_temp_sample'] = {};
}
decoded_data['mcu_temp_sample']['mcu_temp_sample_period_active'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x42],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('mcu_temp_threshold')) {
decoded_data['mcu_temp_threshold'] = {};
}
decoded_data['mcu_temp_threshold']['mcu_temp_high'] = decode_field(arg, 2, 15, 8, "signed");
decoded_data['mcu_temp_threshold']['mcu_temp_low'] = decode_field(arg, 2, 7, 0, "signed");
return 2;
}
},
{
key: [0x43],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('mcu_temp_threshold')) {
decoded_data['mcu_temp_threshold'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['mcu_temp_threshold']['mcu_temp_threshold_enable'] = "Disabled";
break;
case 1:
decoded_data['mcu_temp_threshold']['mcu_temp_threshold_enable'] = "Enabled";
break;
default:
decoded_data['mcu_temp_threshold']['mcu_temp_threshold_enable'] = "Invalid";
}}
return 1;
}
},
{
key: [0x44],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('analog_in_sample_period')) {
decoded_data['analog_in_sample_period'] = {};
}
decoded_data['analog_in_sample_period']['analog_sample_period_idle'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x45],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('analog_in_sample_period')) {
decoded_data['analog_in_sample_period'] = {};
}
decoded_data['analog_in_sample_period']['analog_sample_period_active'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x46],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('analog_threshold')) {
decoded_data['analog_threshold'] = {};
}
decoded_data['analog_threshold']['analog_high'] = (decode_field(arg, 4, 31, 16, "unsigned") * 0.001).toFixed(3);
decoded_data['analog_threshold']['analog_low'] = (decode_field(arg, 4, 15, 0, "unsigned") * 0.001).toFixed(3);
return 4;
}
},
{
key: [0x4A],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('analog_threshold')) {
decoded_data['analog_threshold'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['analog_threshold']['analog_threshold_enable'] = "Disabled";
break;
case 1:
decoded_data['analog_threshold']['analog_threshold_enable'] = "Enabled";
break;
default:
decoded_data['analog_threshold']['analog_threshold_enable'] = "Invalid";
}}
return 1;
}
},
{
key: [0x47],
fn: function(arg) {
decoded_data['light_sample_period'] = decode_field(arg, 4, 31, 0, "unsigned");
return 4;
}
},
{
key: [0x48],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('light_thresholds')) {
decoded_data['light_thresholds'] = {};
}
var val = decode_field(arg, 1, 7, 7, "unsigned");
{switch (val){
case 0:
decoded_data['light_thresholds']['light_threshold_enable'] = "Disabled";
break;
case 1:
decoded_data['light_thresholds']['light_threshold_enable'] = "Enabled";
break;
default:
decoded_data['light_thresholds']['light_threshold_enable'] = "Invalid";
}}
decoded_data['light_thresholds']['light_threshold_control'] = decode_field(arg, 1, 5, 0, "unsigned");
return 1;
}
},
{
key: [0x49],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('light_values_to_transmit')) {
decoded_data['light_values_to_transmit'] = {};
}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['light_values_to_transmit']['light_tx_intensity_reported'] = "Disabled";
break;
case 1:
decoded_data['light_values_to_transmit']['light_tx_intensity_reported'] = "Enabled";
break;
default:
decoded_data['light_values_to_transmit']['light_tx_intensity_reported'] = "Invalid";
}}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['light_values_to_transmit']['light_state'] = "Disabled";
break;
case 1:
decoded_data['light_values_to_transmit']['light_state'] = "Enabled";
break;
default:
decoded_data['light_values_to_transmit']['light_state'] = "Invalid";
}}
return 1;
}
},
{
key: [0x50],
fn: function(arg) {
decoded_data['grace_period'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x51],
fn: function(arg) {
decoded_data['count_threshold'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x52],
fn: function(arg) {
decoded_data['period_threshold'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x53],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('pir_mode')) {
decoded_data['pir_mode'] = {};
}
var val = decode_field(arg, 1, 7, 7, "unsigned");
{switch (val){
case 0:
decoded_data['pir_mode']['pir_enable'] = "Disabled";
break;
case 1:
decoded_data['pir_mode']['pir_enable'] = "Enabled";
break;
default:
decoded_data['pir_mode']['pir_enable'] = "Invalid";
}}
var val = decode_field(arg, 1, 6, 6, "unsigned");
{switch (val){
case 0:
decoded_data['pir_mode']['pir_event_tx'] = "Disabled";
break;
case 1:
decoded_data['pir_mode']['pir_event_tx'] = "Enabled";
break;
default:
decoded_data['pir_mode']['pir_event_tx'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['pir_mode']['pir_motion_state'] = "Disabled";
break;
case 1:
decoded_data['pir_mode']['pir_motion_state'] = "Enabled";
break;
default:
decoded_data['pir_mode']['pir_motion_state'] = "Invalid";
}}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['pir_mode']['pir_motion_count'] = "Disabled";
break;
case 1:
decoded_data['pir_mode']['pir_motion_count'] = "Enabled";
break;
default:
decoded_data['pir_mode']['pir_motion_count'] = "Invalid";
}}
return 1;
}
},
{
key: [0x54],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('hold_off_int')) {
decoded_data['hold_off_int'] = {};
}
decoded_data['hold_off_int']['post_turnon_hold_off'] = decode_field(arg, 2, 15, 8, "unsigned");
decoded_data['hold_off_int']['post_disturbance_hold_off'] = decode_field(arg, 2, 7, 0, "unsigned");
return 2;
}
},
{
key: [0x5A],
fn: function(arg) {
var val = decode_field(arg, 1, 2, 0, "unsigned");
{switch (val){
case 1:
decoded_data['sample_period'] = "16 sec";
break;
case 2:
decoded_data['sample_period'] = "32 sec";
break;
case 3:
decoded_data['sample_period'] = "64 sec";
break;
case 4:
decoded_data['sample_period'] = "128 sec";
break;
default:
decoded_data['sample_period'] = "Invalid";
}}
return 1;
}
},
{
key: [0x5B],
fn: function(arg) {
decoded_data['threshold'] = decode_field(arg, 1, 7, 0, "unsigned");
return 1;
}
},
{
key: [0x5C],
fn: function(arg) {
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['sensor_enable'] = "Disabled";
break;
case 1:
decoded_data['sensor_enable'] = "Enabled";
break;
default:
decoded_data['sensor_enable'] = "Invalid";
}}
return 1;
}
},
{
key: [0x5D],
fn: function(arg) {
decoded_data['dry_calibration'] = decode_field(arg, 1, 7, 0, "unsigned");
return 1;
}
},
{
key: [0x60],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('sample_analysis_mode')) {
decoded_data['sample_analysis_mode'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis_mode']['analysis_enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis_mode']['analysis_enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis_mode']['analysis_enabled'] = "Invalid";
}}
decoded_data['sample_analysis_mode']['cic_enabled'] = decode_field(arg, 1, 1, 1, "unsigned");
return 1;
}
},
{
key: [0x61],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('hpf_config')) {
decoded_data['hpf_config'] = {};
}
decoded_data['hpf_config']['cutoff_freq'] = decode_field(arg, 1, 5, 4, "unsigned");
var val = decode_field(arg, 1, 2, 2, "unsigned");
{switch (val){
case 0:
decoded_data['hpf_config']['hpf_on_sample'] = "Disabled";
break;
case 1:
decoded_data['hpf_config']['hpf_on_sample'] = "Enabled";
break;
default:
decoded_data['hpf_config']['hpf_on_sample'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['hpf_config']['hpf_on_accel_interrupts'] = "Disabled";
break;
case 1:
decoded_data['hpf_config']['hpf_on_accel_interrupts'] = "Enabled";
break;
default:
decoded_data['hpf_config']['hpf_on_accel_interrupts'] = "Invalid";
}}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['hpf_config']['hpf_on_accel_output'] = "Disabled";
break;
case 1:
decoded_data['hpf_config']['hpf_on_accel_output'] = "Enabled";
break;
default:
decoded_data['hpf_config']['hpf_on_accel_output'] = "Invalid";
}}
return 1;
}
},
{
key: [0x62],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('cic_filter_config')) {
decoded_data['cic_filter_config'] = {};
}
decoded_data['cic_filter_config']['d'] = decode_field(arg, 3, 23, 16, "unsigned");
decoded_data['cic_filter_config']['r'] = decode_field(arg, 3, 15, 8, "unsigned");
decoded_data['cic_filter_config']['m'] = decode_field(arg, 3, 7, 0, "unsigned");
return 3;
}
},
{
key: [0x63],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('ml_config')) {
decoded_data['ml_config'] = {};
}
decoded_data['ml_config']['nonzero_MLs'] = decode_field(arg, 7, 55, 48, "unsigned");
decoded_data['ml_config']['ml_upper_limit'] = decode_field(arg, 7, 47, 32, "unsigned");
decoded_data['ml_config']['ml_lower_limit'] = decode_field(arg, 7, 31, 16, "unsigned");
decoded_data['ml_config']['ml_step'] = decode_field(arg, 7, 15, 0, "unsigned");
return 7;
}
},
{
key: [0x64],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('ml1_dlim_config')) {
decoded_data['ml1_dlim_config'] = {};
}
var val = decode_field(arg, 14, 111, 104, "unsigned");
{switch (val){
case 0:
decoded_data['ml1_dlim_config']['num_dlims'] = "0";
break;
case 1:
decoded_data['ml1_dlim_config']['num_dlims'] = "1";
break;
case 2:
decoded_data['ml1_dlim_config']['num_dlims'] = "2";
break;
case 3:
decoded_data['ml1_dlim_config']['num_dlims'] = "3";
break;
default:
decoded_data['ml1_dlim_config']['num_dlims'] = "Invalid";
}}
decoded_data['ml1_dlim_config']['dlim0_0'] = decode_field(arg, 14, 103, 88, "unsigned");
decoded_data['ml1_dlim_config']['dlim_step_0'] = decode_field(arg, 14, 87, 72, "unsigned");
var val = decode_field(arg, 14, 71, 64, "unsigned");
{switch (val){
case 0:
decoded_data['ml1_dlim_config']['threshold_enable_0'] = "Disabled";
break;
case 1:
decoded_data['ml1_dlim_config']['threshold_enable_0'] = "Enabled on Duration Total";
break;
case 2:
decoded_data['ml1_dlim_config']['threshold_enable_0'] = "Enabled on Count";
break;
default:
decoded_data['ml1_dlim_config']['threshold_enable_0'] = "Invalid";
}}
decoded_data['ml1_dlim_config']['AE10_threshold'] = decode_field(arg, 14, 63, 48, "unsigned");
decoded_data['ml1_dlim_config']['AE11_threshold'] = decode_field(arg, 14, 47, 32, "unsigned");
decoded_data['ml1_dlim_config']['AE12_threshold'] = decode_field(arg, 14, 31, 16, "unsigned");
decoded_data['ml1_dlim_config']['AE13_threshold'] = decode_field(arg, 14, 15, 0, "unsigned");
return 14;
}
},
{
key: [0x65],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('ml2_dlim_config')) {
decoded_data['ml2_dlim_config'] = {};
}
var val = decode_field(arg, 14, 111, 104, "unsigned");
{switch (val){
case 0:
decoded_data['ml2_dlim_config']['num_of_dlims'] = "0";
break;
case 1:
decoded_data['ml2_dlim_config']['num_of_dlims'] = "1";
break;
case 2:
decoded_data['ml2_dlim_config']['num_of_dlims'] = "2";
break;
case 3:
decoded_data['ml2_dlim_config']['num_of_dlims'] = "3";
break;
default:
decoded_data['ml2_dlim_config']['num_of_dlims'] = "Invalid";
}}
decoded_data['ml2_dlim_config']['dlim0_1'] = decode_field(arg, 14, 103, 88, "unsigned");
decoded_data['ml2_dlim_config']['dlim_step_1'] = decode_field(arg, 14, 87, 72, "unsigned");
var val = decode_field(arg, 14, 71, 64, "unsigned");
{switch (val){
case 0:
decoded_data['ml2_dlim_config']['threshold_enabled_1'] = "Disabled";
break;
case 1:
decoded_data['ml2_dlim_config']['threshold_enabled_1'] = "Enabled on Duration Total";
break;
case 2:
decoded_data['ml2_dlim_config']['threshold_enabled_1'] = "Enabled on Count";
break;
default:
decoded_data['ml2_dlim_config']['threshold_enabled_1'] = "Invalid";
}}
decoded_data['ml2_dlim_config']['AE20_threshold'] = decode_field(arg, 14, 63, 48, "unsigned");
decoded_data['ml2_dlim_config']['AE21_threshold'] = decode_field(arg, 14, 47, 32, "unsigned");
decoded_data['ml2_dlim_config']['AE22_threshold'] = decode_field(arg, 14, 31, 16, "unsigned");
decoded_data['ml2_dlim_config']['AE23_threshold'] = decode_field(arg, 14, 15, 0, "unsigned");
return 14;
}
},
{
key: [0x68],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('sample_analysis')) {
decoded_data['sample_analysis'] = {};
}
var val = decode_field(arg, 1, 0, 0, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_total_enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_total_enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_total_enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 1, 1, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_min_enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_min_enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_min_enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 2, 2, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_max_enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_max_enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_max_enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 3, 3, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_range_Enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_range_Enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_range_Enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 4, 4, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_mean_Enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_mean_Enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_mean_Enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 5, 5, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_median_Enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_median_Enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_median_Enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 6, 6, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_SD_Enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_SD_Enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_SD_Enabled'] = "Invalid";
}}
var val = decode_field(arg, 1, 7, 7, "unsigned");
{switch (val){
case 0:
decoded_data['sample_analysis']['AE_duration_count_Enabled'] = "Disabled";
break;
case 1:
decoded_data['sample_analysis']['AE_duration_count_Enabled'] = "Enabled";
break;
default:
decoded_data['sample_analysis']['AE_duration_count_Enabled'] = "Invalid";
}}
return 1;
}
},
{
key: [0x71],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('metadata')) {
decoded_data['metadata'] = {};
}
decoded_data['metadata']['app_major_version'] = decode_field(arg, 7, 55, 48, "unsigned");
decoded_data['metadata']['app_minor_version'] = decode_field(arg, 7, 47, 40, "unsigned");
decoded_data['metadata']['app_revision'] = decode_field(arg, 7, 39, 32, "unsigned");
decoded_data['metadata']['loramac_major_version'] = decode_field(arg, 7, 31, 24, "unsigned");
decoded_data['metadata']['loramac_minor_version'] = decode_field(arg, 7, 23, 16, "unsigned");
decoded_data['metadata']['loramac_revision'] = decode_field(arg, 7, 15, 8, "unsigned");
var val = decode_field(arg, 7, 7, 0, "unsigned");
{switch (val){
case 0:
decoded_data['metadata']['region'] = "EU868";
break;
case 1:
decoded_data['metadata']['region'] = "US915";
break;
case 2:
decoded_data['metadata']['region'] = "AS923";
break;
case 3:
decoded_data['metadata']['region'] = "AU915";
break;
case 4:
decoded_data['metadata']['region'] = "IN865";
break;
case 5:
decoded_data['metadata']['region'] = "CN470";
break;
case 6:
decoded_data['metadata']['region'] = "KR920";
break;
case 7:
decoded_data['metadata']['region'] = "RU864";
break;
case 8:
decoded_data['metadata']['region'] = "DN915";
break;
default:
decoded_data['metadata']['region'] = "Invalid";
}}
return 7;
}
},
];
}
if (input.fPort === 10) {
decoder = [
{
key: [0x00, 0xFF],
fn: function(arg) {
decoded_data['battery_voltage'] = (decode_field(arg, 2, 15, 0, "signed") * 0.01).toFixed(2);
return 2;
}
},
{
key: [0x01, 0x00],
fn: function(arg) {
var val = decode_field(arg, 1, 7, 0, "unsigned");
{switch (val){
case 0:
decoded_data['reed_state'] = "Off";
break;
case 255:
decoded_data['reed_state'] = "On";
break;
default:
decoded_data['reed_state'] = "Invalid";
}}
return 1;
}
},
{
key: [0x08, 0x04],
fn: function(arg) {
decoded_data['reed_count'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x0C, 0x00],
fn: function(arg) {
var val = decode_field(arg, 1, 7, 0, "unsigned");
{switch (val){
case 0:
decoded_data['impact_alarm'] = "Off";
break;
case 255:
decoded_data['impact_alarm'] = "On";
break;
default:
decoded_data['impact_alarm'] = "Invalid";
}}
return 1;
}
},
{
key: [0x05, 0x02],
fn: function(arg) {
decoded_data['acceleration_magnitude'] = (decode_field(arg, 2, 15, 0, "unsigned") * 0.001).toFixed(3);
return 2;
}
},
{
key: [0x07, 0x71],
fn: function(arg) {
if(!decoded_data.hasOwnProperty('acceleration')) {
decoded_data['acceleration'] = {};
}
decoded_data['acceleration']['x'] = (decode_field(arg, 6, 47, 32, "signed") * 0.001).toFixed(3);
decoded_data['acceleration']['y'] = (decode_field(arg, 6, 31, 16, "signed") * 0.001).toFixed(3);
decoded_data['acceleration']['z'] = (decode_field(arg, 6, 15, 0, "signed") * 0.001).toFixed(3);
return 6;
}
},
{
key: [0x0E, 0x00],
fn: function(arg) {
var val = decode_field(arg, 1, 7, 0, "unsigned");
{switch (val){
case 0:
decoded_data['external_connector_state'] = "Low(short-circuit)";
break;
case 255:
decoded_data['external_connector_state'] = "High(open-circuit)";
break;
default:
decoded_data['external_connector_state'] = "Invalid";
}}
return 1;
}
},
{
key: [0x0F, 0x04],
fn: function(arg) {
decoded_data['external_connector_counter'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x11, 0x02],
fn: function(arg) {
decoded_data['external_connector_analog_mv'] = (decode_field(arg, 2, 15, 0, "signed") * 0.001).toFixed(3);
return 2;
}
},
{
key: [0x0B, 0x67],
fn: function(arg) {
decoded_data['mcu_temperature'] = (decode_field(arg, 2, 15, 0, "signed") * 0.1).toFixed(1);
return 2;
}
},
{
key: [0x03, 0x67],
fn: function(arg) {
decoded_data['ambient_temperature'] = (decode_field(arg, 2, 15, 0, "signed") * 0.1).toFixed(1);
return 2;
}
},
{
key: [0x04, 0x68],
fn: function(arg) {
decoded_data['relative_humidity'] = (decode_field(arg, 1, 7, 0, "unsigned") * 0.5).toFixed(1);
return 1;
}
},
{
key: [0x02, 0x00],
fn: function(arg) {
var val = decode_field(arg, 1, 7, 0, "unsigned");
{switch (val){
case 0:
decoded_data['light_detected'] = "Dark";
break;
case 255:
decoded_data['light_detected'] = "Bright";
break;
default:
decoded_data['light_detected'] = "Invalid";
}}
return 1;
}
},
{
key: [0x10, 0x02],
fn: function(arg) {
decoded_data['light_intensity'] = decode_field(arg, 1, 7, 0, "unsigned");
return 1;
}
},
{
key: [0x0A, 0x00],
fn: function(arg) {
var val = decode_field(arg, 1, 7, 0, "unsigned");
{switch (val){
case 0:
decoded_data['motion_event_state'] = "None";
break;
case 255:
decoded_data['motion_event_state'] = "Detected";
break;
default:
decoded_data['motion_event_state'] = "Invalid";
}}
return 1;
}
},
{
key: [0x0D, 0x04],
fn: function(arg) {
decoded_data['motion_event_count'] = decode_field(arg, 2, 15, 0, "unsigned");
return 2;
}
},
{
key: [0x09, 0x00],
fn: function(arg) {
var val = decode_field(arg, 1, 7, 0, "unsigned");
{switch (val){
case 0:
decoded_data['moisture'] = "Dry";
break;
case 255:
decoded_data['moisture'] = "Wet";
break;
default:
decoded_data['moisture'] = "Invalid";
}}
return 1;
}
},
];
}
try {
for (var bytes_left = bytes.length; bytes_left > 0;) {
var found = false;
for (var i = 0; i < decoder.length; i++) {
var item = decoder[i];
var key = item.key;
var keylen = key.length;
var header = slice(bytes, 0, keylen);
if (is_equal(header, key)) { // Header in the data matches to what we expect
var f = item.fn;
var consumed = f(slice(bytes, keylen, bytes.length)) + keylen;
bytes_left -= consumed;
bytes = slice(bytes, consumed, bytes.length);
found = true;
break;
}
}
if (!found) {
errors.push("Unable to decode header " + toHexString(header).toUpperCase());
break;
}
}
} catch (error) {
errors = "Fatal decoder error";
}
function slice(a, f, t) {
var res = [];
for (var i = 0; i < t - f; i++) {
res[i] = a[f + i];
}
return res;
}
// Extracts bits from a byte array
function extract_bytes(chunk, startBit, endBit) {
var array = new Array(0);
var totalBits = startBit - endBit + 1;
var totalBytes = Math.ceil(totalBits / 8);
var endBits = 0;
var startBits = 0;
for (var i = 0; i < totalBytes; i++) {
if(totalBits > 8) {
endBits = endBit;
startBits = endBits + 7;
endBit = endBit + 8;
totalBits -= 8;
} else {
endBits = endBit;
startBits = endBits + totalBits - 1;
totalBits = 0;
}
var endChunk = chunk.length - Math.ceil((endBits + 1) / 8);
var startChunk = chunk.length - Math.ceil((startBits + 1) / 8);
var word = 0x0;
if (startChunk == endChunk){
var endOffset = endBits % 8;
var startOffset = startBits % 8;
var mask = 0xFF >> (8 - (startOffset - endOffset + 1));
word = (chunk[startChunk] >> endOffset) & mask;
array.unshift(word);
} else {
var endChunkEndOffset = endBits % 8;
var endChunkStartOffset = 7;
var endChunkMask = 0xFF >> (8 - (endChunkStartOffset - endChunkEndOffset + 1));
var endChunkWord = (chunk[endChunk] >> endChunkEndOffset) & endChunkMask;
var startChunkEndOffset = 0;
var startChunkStartOffset = startBits % 8;
var startChunkMask = 0xFF >> (8 - (startChunkStartOffset - startChunkEndOffset + 1));
var startChunkWord = (chunk[startChunk] >> startChunkEndOffset) & startChunkMask;
var startChunkWordShifted = startChunkWord << (endChunkStartOffset - endChunkEndOffset + 1);
word = endChunkWord | startChunkWordShifted;
array.unshift(word);
}
}
return array;
}
// Applies data type to a byte array
function apply_data_type(bytes, data_type) {
var output = 0;
if (data_type === "unsigned") {
for (var i = 0; i < bytes.length; ++i) {
output = (to_uint(output << 8)) | bytes[i];
}
return output;
}
if (data_type === "signed") {
for (var i = 0; i < bytes.length; ++i) {
output = (output << 8) | bytes[i];
}
// Convert to signed, based on value size
if (output > Math.pow(2, 8 * bytes.length - 1)) {
output -= Math.pow(2, 8 * bytes.length);
}
return output;
}
if (data_type === "bool") {
return !(bytes[0] === 0);
}
if (data_type === "hexstring") {
return toHexString(bytes);
}
return null; // Incorrect data type
}
// Decodes bitfield from the given chunk of bytes
function decode_field(chunk, size, start_bit, end_bit, data_type) {
var new_chunk = chunk.slice(0, size);
var chunk_size = new_chunk.length;
if (start_bit >= chunk_size * 8) {
return null; // Error: exceeding boundaries of the chunk
}
if (start_bit < end_bit) {
return null; // Error: invalid input
}
var array = extract_bytes(new_chunk, start_bit, end_bit);
return apply_data_type(array, data_type);
}
// Converts value to unsigned
function to_uint(x) {
return x >>> 0;
}
// Checks if two arrays are equal
function is_equal(arr1, arr2) {
if (arr1.length != arr2.length) {
return false;
}
for (var i = 0; i != arr1.length; i++) {
if (arr1[i] != arr2[i]) {
return false;
}
}
return true;
}
// Converts array of bytes to hex string
function toHexString(byteArray) {
var arr = [];
for (var i = 0; i < byteArray.length; ++i) {
arr.push(('0' + (byteArray[i] & 0xFF).toString(16)).slice(-2));
}
return arr.join(' ');
}
// Converts array of bytes to 8 bit array
function convertToUint8Array(byteArray) {
var arr = [];
for (var i = 0; i < byteArray.length; i++) {
arr.push(to_uint(byteArray[i]) & 0xff);
}
return arr;
}
decoded_data["errors"] = errors;
return decoded_data;
}
We would like to point out that TTN has a limitation on the size of the formatter code of 40960 characters (at the moment) and therefore this code should be passed through the JavaScript code minifier before saving it to TTN.
7. Saving of Formatter and Testing of the Sensor
After saving the formatter, you can test the sensor by triggering it to see if the data is decoded correctly. The decoded data should now appear as expected.
Once again we would like to pay attention to the fact that in our tutorial we used a sensor with an old FW version and therefore we used a v2.2 formatter. If a more “recent” sensor is used, it will most likely be necessary to use a v3.1 formatter.
Step 3: Connecting VIVID PIR Sensor to the Kaa IoT Platform
In this step, we will integrate the TEKTELIC VIVID PIR Sensor with the Kaa IoT Platform to manage and visualize the sensor data.
LoRaWAN devices can be connected to the Kaa IoT platform by creating application and device integrations. We already created an application integration in the previous tutorial. Now, we need to create a device integration for our sensor.
In the previous tutorial, we created an application version for Breeze sensors. Now, let’s create an application version for Vivid (PIR) sensors.
Remember to enable auto-extract for digital data (refer to the first tutorial for more details).
1. Adding Device Integration
- Go to the LoRaWAN tab, select the application integration called tektelic-sensors, and click Add Devices.
- In the opened window, you will see the VIIVD PIR sensor. Select the appropriate application version, choose the sensor, and click Add Device.
The integration has been added successfully:
2. Endpoint Configuration
- Click on the sensor and navigate to the endpoint associated with this sensor.
If we return to the data in The Things Stack, we’ll notice that most parameter states are represented as strings. For example, the state of the magnetic sensor appears as On/Off, and the state of the motion detector appears as Detected/None.
3. Configuring Data Mapping
To make the data understandable by the platform, we need to configure mapping.
- Go to Device Management → Applications → tektelic-sensors → Base Configuration → epts.
- Click Add Time Series Value Mapping and add mapping for the motion_event_state parameter.
4. Test Data and Viewing in Time-Series
After setting up the mapping, you can trigger the sensor. The data received from the sensor will now appear in the time-series view in the table format:
Step 4: Updating Your Solution with the New Widget
Now when the sensor is integrated, we can move to the solution by adding a new widget for the sensor data.
1. Create the Widget
We will use the solution created in the first tutorial and add a new widget called Motion. This widget will display the motion detection status in the form of an image.
Similar to the widget from the previous tutorial, the key difference is that the information (whether there is motion or not) will be displayed as an image.
2. Preparing Images for the Widget
- Prepare three images for the different statuses: motion detected, motion absent, and unknown (you can save images below and use them).
- Also, prepare the background image for the widget (save the image below similar to the previous tutorial).
3. Configuring the Widget
Copy the widget code from the previous tutorial and make the following adjustments:
- Change the widget name to Motion.
- Select the correct endpoint.
- Choose the time-series: motion_event_state.
- Upload the new status icons.
4. Example of Widget Display
When motion is absent:
When motion is detected:
5. Widget Code
Use the following code to set up the widget (you will need to select the appropriate application, endpoint ID and upload picture files, or provide links to them):
{
"config": {
"header": {
"stylingCustomization": {
"textPlacement": "start",
"headerBackgroundColor": "",
"titleTextColor": "",
"additionalStyles": {
"title": {},
"header": {}
}
},
"displayTitle": true,
"title": "Motion",
"displayIcon": false
},
"serviceIntegration": {
"metadataServiceName": "epr",
"serviceName": "epts",
"appName": "cqtg58am6fhc73co67u0",
"updateInterval": 3000,
"endpoint": "1333552e-f4f1-4a31-9359-4af0f29b2349"
},
"backgroundImage": {
"backgroundType": "image",
"url": "https://minio.cloud.kaaiot.com/d29eeb91-131a-4831-b541-7b781201d6d4-public/__wd_resources/426156eb-218e-4f9a-929a-66493d7691fd.png",
"values": [],
"size": {
"height": 300,
"width": 300
}
},
"fields": [
{
"coordinates": {
"x1": "480",
"y1": "70"
},
"name": "Temperature",
"styling": {
"additionalStyles": {},
"redirectBlockPlacement": {}
},
"timeSeriesName": "ambient_temperature",
"values": [
{
"path": "values.ambient_temperature",
"displayUnit": "Best",
"displayScale": 1,
"unitStyle": {
"color": "808080",
"font-size": "20"
},
"style": {
"color": "808080",
"font-size": "35"
},
"displayPostfix": "%",
"valueUnit": "C",
"type": "path",
"hoverStyles": {},
"measure": "Temperature"
}
]
},
{
"coordinates": {
"x1": "500",
"y1": "200"
},
"name": "humidity",
"styling": {
"additionalStyles": {},
"color": "#90EE90",
"redirectBlockPlacement": {}
},
"timeSeriesName": "relative_humidity",
"values": [
{
"displayPostfix": "%",
"displayScale": 0,
"hoverStyles": {},
"measure": "Custom",
"path": "values.relative_humidity",
"style": {
"color": "808080",
"font-size": "35"
},
"type": "path",
"unitStyle": {
"color": "808080",
"font-size": "20"
}
}
]
},
{
"coordinates": {
"x1": "460",
"y1": "315"
},
"name": "Battery",
"styling": {
"additionalStyles": {},
"redirectBlockPlacement": {}
},
"timeSeriesName": "battery_voltage",
"values": [
{
"displayPostfix": "V",
"displayScale": 3,
"hoverStyles": {},
"measure": "Custom",
"path": "values.battery_voltage",
"style": {
"color": "808080",
"font-size": "35"
},
"type": "path",
"unitStyle": {
"color": "808080",
"font-size": "20"
}
}
]
},
{
"coordinates": {
"x1": "40",
"y1": "50"
},
"name": "motion",
"styling": {
"additionalStyles": {},
"redirectBlockPlacement": {}
},
"timeSeriesName": "motion_event_state",
"values": [
{
"hoverStyles": {},
"icons": [
{
"condition": "Detected",
"icon": "https://minio.cloud.kaaiot.com/d29eeb91-131a-4831-b541-7b781201d6d4-public/__wd_resources/5524cbe7-02d0-4120-a73a-fee2268db66f.png",
"operator": "=="
},
{
"condition": "None",
"icon": "https://minio.cloud.kaaiot.com/d29eeb91-131a-4831-b541-7b781201d6d4-public/__wd_resources/43aa123d-923a-40b6-b4cd-aeba97f395c5.png",
"operator": "=="
},
{
"condition": "default",
"icon": "https://minio.cloud.kaaiot.com/d29eeb91-131a-4831-b541-7b781201d6d4-public/__wd_resources/67c6d600-c8f9-4334-80d3-606ddbd2b5c3.png",
"operator": "=="
}
],
"measure": "Custom",
"path": "values.motion_event_state",
"style": {
"height": "300",
"width": "250"
},
"type": "icon"
}
]
}
],
"appearance": {
"contentFit": "container"
},
"type": "epLabel"
},
"lastUpdated": 1724761207133,
"layout": {
"h": 9,
"minH": 3.5,
"minW": 2,
"w": 5,
"x": 0,
"y": 9
},
"order": 2
}
Conclusion
Congratulations! You have successfully connected the TEKTELIC VIVID LoRaWAN® Smart Room & Occupancy Sensor to the Kaa IoT Platform. With this integration, you now have real-time monitoring capabilities for occupancy, temperature, humidity, light, and other environmental data. The Kaa IoT platform allows you to manage and analyze the data coming from your sensors, helping you optimize building operations, improve energy efficiency, and enhance user comfort.
If you encounter any issues or have questions about further configurations, refer to our support documentation or contact our technical team for assistance. Stay tuned for more tutorials on how to maximize the potential of the Kaa IoT Platform with various devices and integrations!
Related Stories
Explore the features of the TEKTELIC COMFORT LoRaWAN Smart Room sensor in this tutorial...
TEKTELIC BREEZE and Kaa integration provides actionable insights...
Kaa Cloud enables file uploads directly from your IoT devices...
In this tutorial, we will go over the steps to set up alerts in the Kaa IoT platform...
